Split Core(Clip on) Current Sensor

Split Core (Clip on) Current Sensor

The JIANGYIN SPARK series of split core current sensors are designed for fast and easy installation. Split-core transformers are ideal for installation on existing electrical wiring by snapping around the conductor.This method permits a safer,easy and portable current measurement.

Features:
Small size, low cost
High secondary turns
Secure locking hinge

Specifications:
Maximum continuous primary current 1A to 600AAc
Current Ratio: 500:1 ,1000:1 ,2000:1 ,2500:1 ,3000: 1
Output: mA or 0.333Vac to 3.53Vac
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600Vac
Maximum Primary Voltage: 5000Vac(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 24AWG
CE ,UL recognized, and RoHS compliant
Output and leads can be customized

Applications:

PV Inverters,PV monitoring,Energy storage solutions
Smart energy
Digital Fault Recorders
Smart Grid Application Features ，Load Center
Three Phase Balance Control
In-Factory Display ，In-Home Display
Inverters for Solar & Wind Turbine Systems
Power Measurement Device For PLC

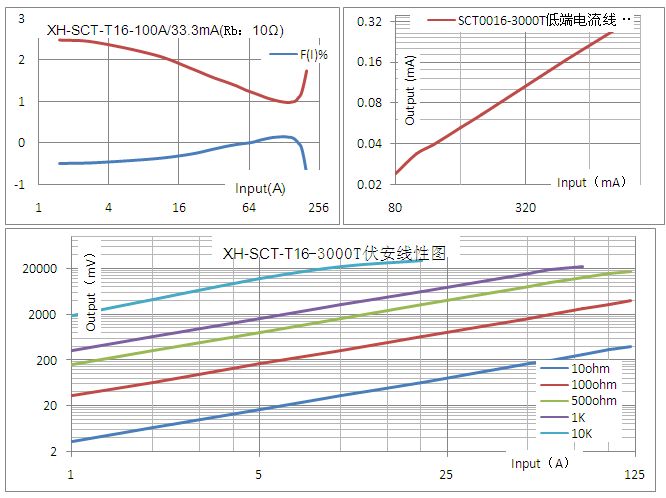

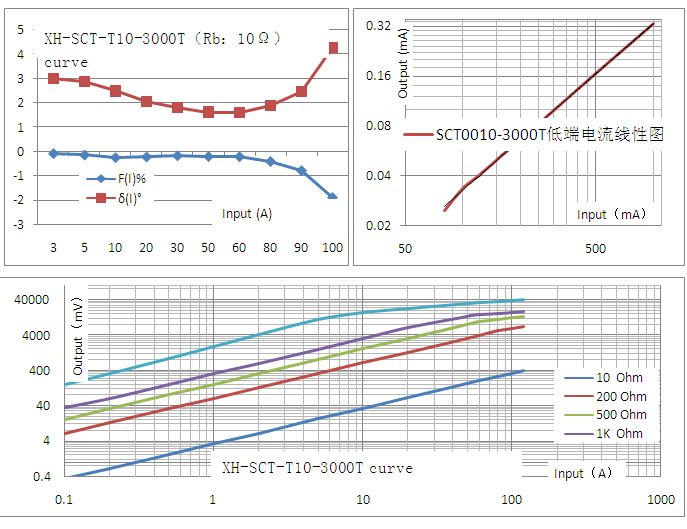

Performance Curve:
