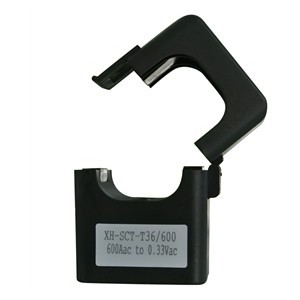

Split-Core AC Current Sensor XH- SCT-T36
φ36mm Opening With 100 To 600 Amp Rating
Description:
Jiangyin Spark XH-SCT-T36 Series split-core current senses AC current from 100 to 600 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.
Specifications:
-
Maximum continuous primary current 600 A AC
-
Current Ratio: 3000: 1
-
Output: 0.333 Volt at rated current
-
Accuracy: ± 1% from 5% to 120% of rated current
-
Insulation Voltage: 600VAC
-
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
-
Phase angle: Less than 2 degrees at 50% of rated current
-
Frequency Range: 50 Hz to 400 Hz
-
Operating Temperature: -15Cto 60C.
-
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
-
CE recognized, and RoHS compliant
-
Output and leads can be customized
Applications:
-
Sub-Metering Accurate Measurement
-
Data Loggers to analyze Building & Machinery Performance
-
Digital Fault Recorders
-
Smart Grid Application Features
-
Load Center
-
Three Phase Balance Control
-
In-Factory Display In-Home Display
-
Inverters for Solar & Wind Turbine Systems
-
Power Measurement Device For PLC
