Consumption Clamp Current transformer XH-SCT-S21

Quote Now

Detail
Feedback

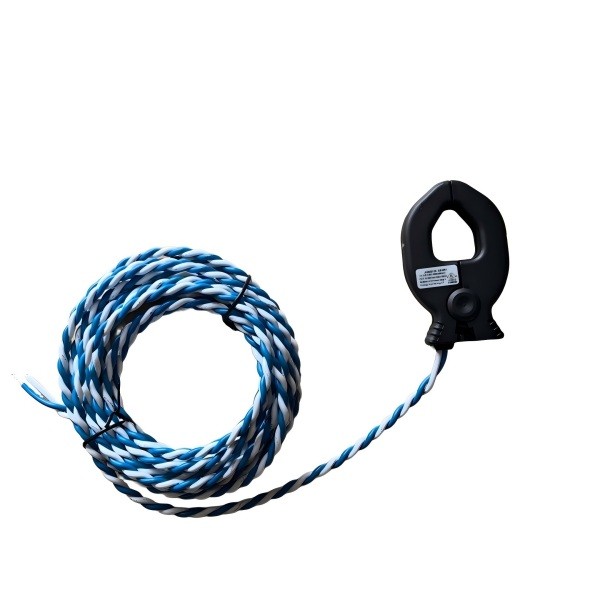

Consumption Clamp Current Transformer XH- SCT-S21

21φmm Opening With 50 To 300 Amp Rating

Description:

Jiangyin Spark XH-SCT-S21 Slim split core current transformer ,split core design ,this CT is a clamp-style Current Transformer (CT) that can be used with IQ Combiner and IQ Gateway products, can be easily installed with single hand, and works well in crowded panels with complex wiring. The Consumption Clamp CT enables battery and home energy usage monitoring. UL2808 certified for use at the service entrance

Application:
Measures AC current flow to electric motors, energy monitoring, energy saving solution ,power management,Residential Systems

Model	Input current(A)	Max cufrrent(A)	Output
XH-SCT-S21	0.2-300Aac	320Aac	mA/0.333Vac/0-3Vac

ELECTRICAL SPECIFICATION

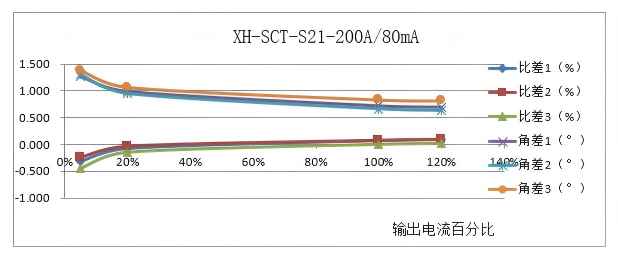

Accuracy (1% - 100% of rated current)		±0.5	%
CT Phase Angle (5% - 120% of rated current)		0.5 (Ultracrystalline)/1.5± 0.5(Silicon iron)	Degrees
Nominal Line Frequency		60 / 50	Hz
Current Rating		200A/80mA,200A/40mA,300A/100mA,200A/66.6mA ,200A/0.333V.etc	A
Output Voltage		333mV ,mV or mA
Over voltage Category		CATIII 600V
Maximum Continuous Amps		300	A
MECHANICAL
Type		Split core, clamp design
Average Window Diameter		21	mm
Lead Wire	Type	Twisted pair	MTW,UL1015
	Length	2.4m or customized
	Gauge	20,22	AWG
Material		Nylon
Weight		140	g
ENVIRONMENTAL
Operating Temperature Range		-40 to 60	°C
Operating Humidity		5% to 90% relative humidity
IP Rating		30 (NEMA 1)
UL 2808 (XOBA ) LIST
