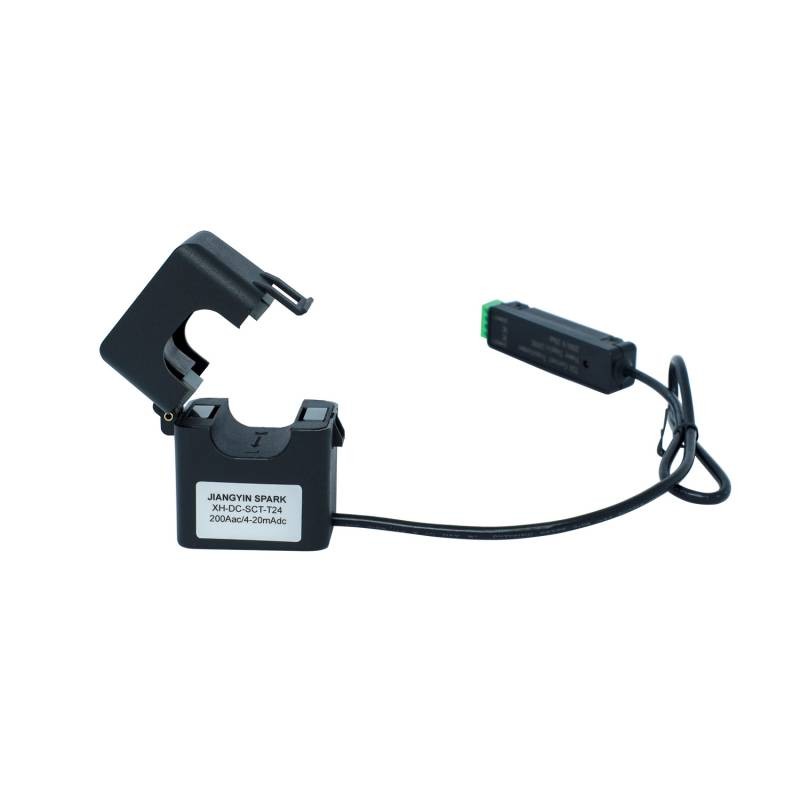

DC split core current transducer

Jiangyin Spark DC split-core current transmitter converts AC current signals into standard DC signals, and transmits them in either constant voltage or constant current mode, like 4-20mA dc , 0-5V dc output .It features high accuracy, compact size, low power consumption, and strong anti-interference capability. It is especially suitable for intelligent monitoring systems of load currents in applications such as motors, smart low-voltage distribution cabinets, and PLC automation.

Split core DC current sensor 4-20mA dc / 0-5V dc secondary

Specifications :
Input current: 50-600A ac
Output Signal: 4-20mA dc , 0-5V dc
Measurement Accuracy: +/- 2%
Linearity: +/- 2%
Temperature drift: <5%
Auxiliary power supply: 15-24V dc
Maximum Output Signal: 4-20mA
Operating Temperature: -30° C to +65° C
Storage Temperature: -40° C to +85° C
Operating Humidity: 10 to 95 %RH non-condensing
Storage Humidity: 10 to 95 %RH non-condensing
