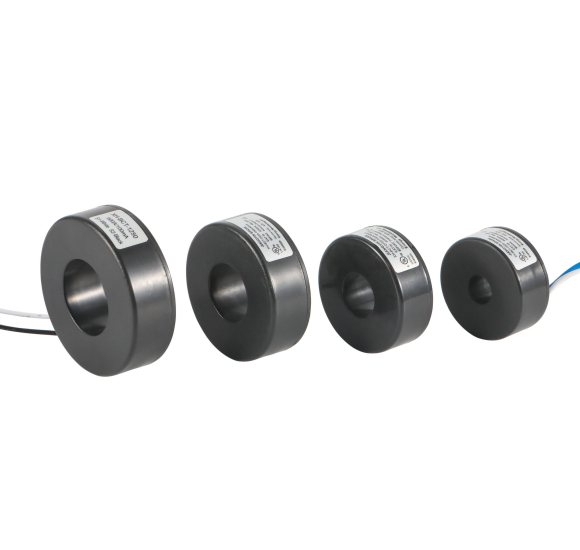

Solid Core Current Transformer

Solid Core Current Transformer

Measure current from 5Amp to 400 Amp

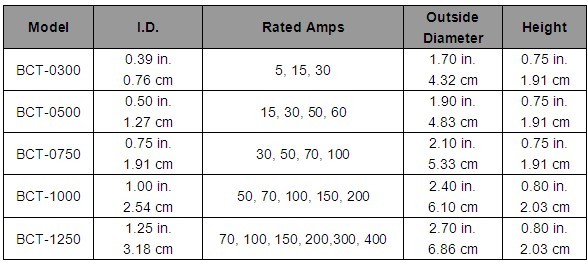

Jiangyin Spark XH-BCT Series of Solid Core Current Transformer design for better accuracy for 0.333V output .5 standard models for your choice.Solid core CTs are more accurately , small in size, and very cheap .If mA sendary output ,accuracy can be 0.1%

  • Rated input current from 5A to 400A
  • 0.333V AC output at rated current
  • Accuracy ±1%
  • Epoxy encapsulated housing
  • Accuracy at 10% to 130% of rated current
  • 1.05 meter twisted-pair lead
  • RoHS Compliant
  • Custom output and other parameters are available
