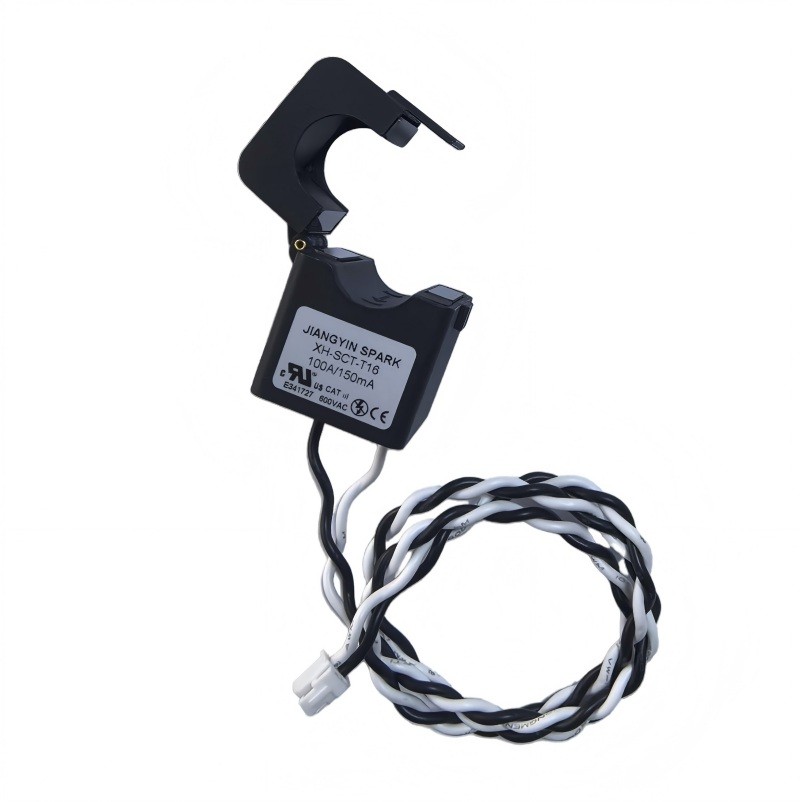

Split Core Current Sensor XH-SCT-T16-120A/40mA

Split-Core AC Current Sensor XH- SCT-T16-120A/40mA

φ16mm Opening With 50 To 120 Amp Rating

Description:

Jiangyin Spark XH-SCT-T16 Series split-core current senses AC current from 50 to 120 Amps passing through the center conductor.Split-core current transformers (CTs) are hinged, separable sensors used to measure AC current without disconnecting primary conductors, enabling fast, safe, and live installation

Features:

• Maximum continuous primary current 120 A AC

• Output: 40mA

• Current Ratio:3000: 1

• Maximum Primary Voltage: 5000Vac(Insulated Conductor)

• Phase angle: Less than 1.5 degrees at rated current

• Frequency Range: 50 Hz to 400 Hz

• Accuracy: ± 1% from 5% to 120% of rated current

• Operating Temperature: -15 Cto 60 C.

• Insulation Voltage: 600Vac

• Leads: 4Foot(105cm), UL 1015, Twisted Pair, 24AWG or customized

• UL ,CE recognized, and RoHS compliant

• Output and leads can be customized

Applications:

• Sub-Metering Accurate Measurement

• Data Loggers to analyze Building & Machinery Performance

• Digital Fault Recorders

• Smart Grid Application Features

• Energy management systems

• Three Phase Balance Control

• In-Factory Display In-Home Display

• Inverters for Solar & Wind Turbine Systems

• Power Measurement Device For PLC

Dimension: unit mm

Curve Performance:
