split core current transformer 25mm

split core current transformer 25mm

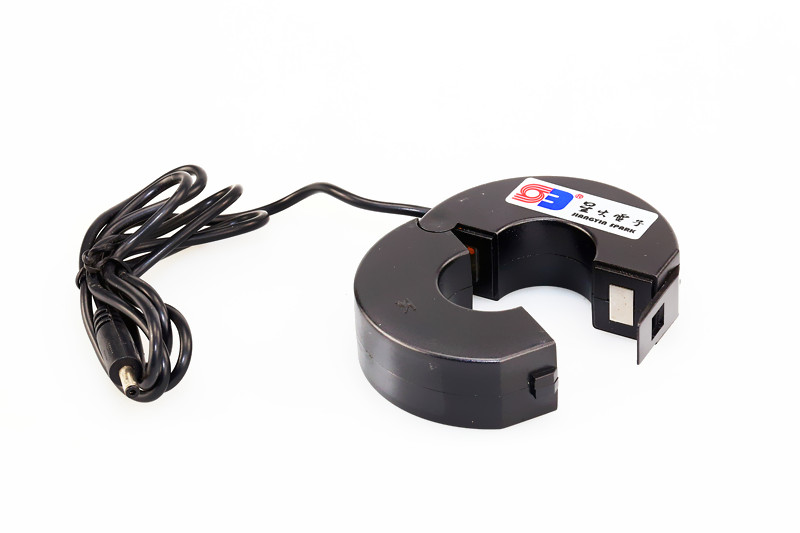

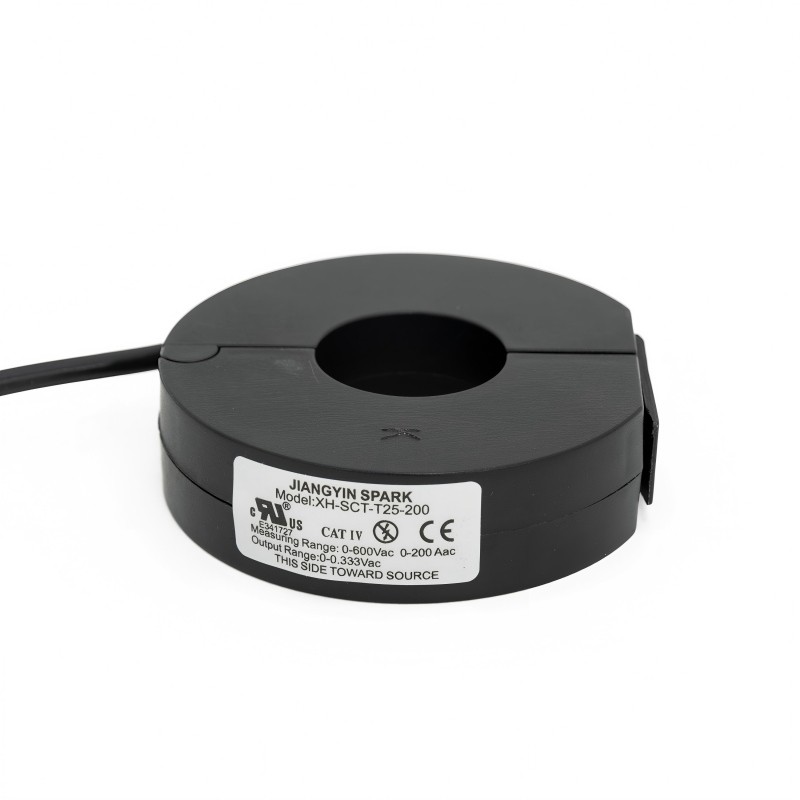

Split-Core Current Transformer XH- SCT25

Φ25mm Opening With 50 To 400 Amp Rating

Description:

XH-SCT25 Series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation

Specifications:

  • Rated Current 50A to 400A
  • Normal Current Output: 20mA, 40mA, 66.6mA,100 mA
  • Normal Voltage Output: 0.333V

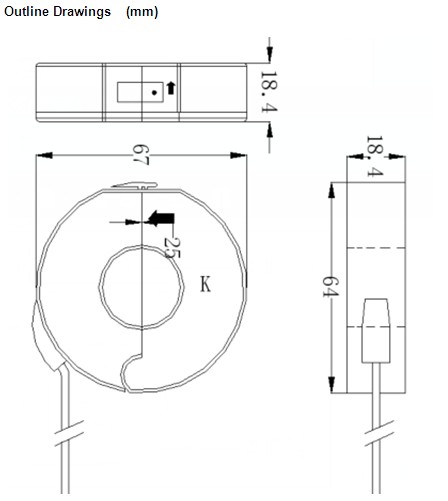

  • Opening Dimension:25mm
  • Insulation Voltage:600Vac
  • Withstand Voltage: 2500V/0.3mA/3S
  • Accuracy:Class ±0.5%
  • Phase Error: ≦1˚
  • Operating Temperature: -40 C- 85 C
  • RoHS Compliant
  • Frequency Range:50-400Hz
  • Leads:4Foot(105cm),UL 2464
  • Weight: 150g
  • Output and leads can be customized

Applications:

  • Sub-Metering Accurate Measurement
  • Data Loggers to analyze Building & Machinery Performance
  • Digital Fault Recorders
  • Smart Grid Application Features ,Load Center
  • Three Phase Balance Control
  • In-Factory Display ,In-Home Display
  • Inverters for Solar & Wind Turbine Systems
  • Power Measurement Device For PLC
