UL2808 Mini Split Core Current Sensor

UL2808 Mini Split Core Current Sensor

0.333V or 3000:1 output

UL2808 (XOBA) Mini Split Core Current Sensor

The JIANGYIN SPARK series of UL 2808 (XOBA) split core current transformers are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary.

一、SPECIFICATIONS :

1、Rated Voltage:0.66KV

2、Insulation Voltage:5400V

      CATIII 600V or CATIV 250V

3、Rated Frequency:50HZ/60HZ

4、Operating Temperature:-35℃to 65℃

5、Flame resistance:UL94-V0

6、Leads : UL 1015 18awg

6、Certificates: UL2808 and IEC61010-1

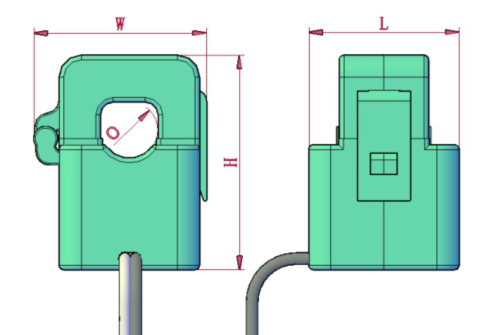

二、DIMENSIONS( mm ):



Model

Rated Input(A)

Output

L(mm)

W(mm)

H(mm)

O(mm)

XH-SCT-T06

0.2-80Aac

mA/0.333Vac

/0-3 Vac

29.5

33.5

43

6

XH-SCT-T12

0.2-120Aac

34.5

40

49

12

        XH-SCT-T18          0.2-300Aac     35.5      45.5      58      17
        XH-SCT-T20          0.2-300Aac    35.9      56      69      20
