Waterproof outdoor split core current transformer 36mm

Waterproof outdoor split core current transformer 36mm

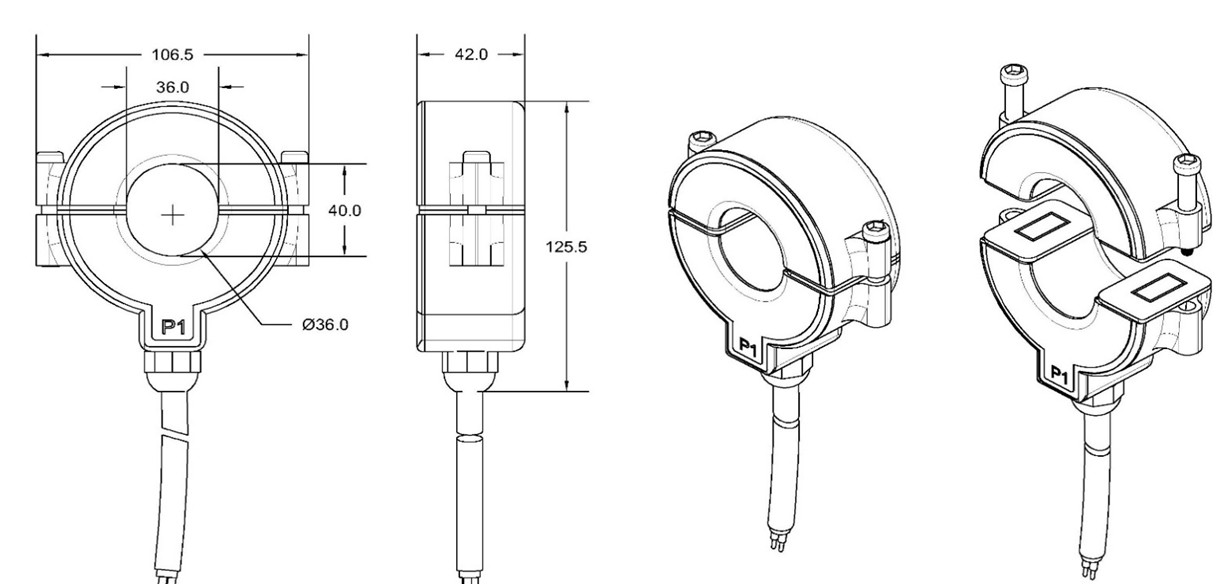

FSCT-36 Waterproof Split Core Current Transformer

FSCT-36 Waterproof current transformer is built with silicone steel core and is potted for outdoor use. In addition, it is designed for easy installation on ground potential conductors.

Specification

Window size : 36 mm

Operation Condition: Outdoor

Usage: Measurement

Insulating Medium: Common Insulating Materials

Accuracy: 0.5-1%

Standards: GB20840; IEC 61869

Safety Factor Rating :< 10

Rated Frequency: 50Hz or 60Hz

Environment: Outdoor

Rated Secondary Current: 5A or 1A

Secondary Winding Power Frequency Withst: 3kv/1min

Certificates:Waterproof certificate

Phase: Single

Export Markets: Global

Model FSCT-60
Window size 36mm
Rated primary current 100-800 Arms
Rated output 5A/1A
IP rating IP 67
Burden 1.5VA –5VA
Max current 800 Arms
Turns 100-3000T
Accuracy class 0.5, 1.0
Equipment maximum voltage 0.66/0.72KV
Wire lead 2*2.5mm2 sheathed wire
Insulation strength 3KVac/min
Insulation impedance DC500V/100MΩ
Rated frequency 50-400HZ
Working temperature —25℃~70℃
Storage temperature —30℃~80℃
